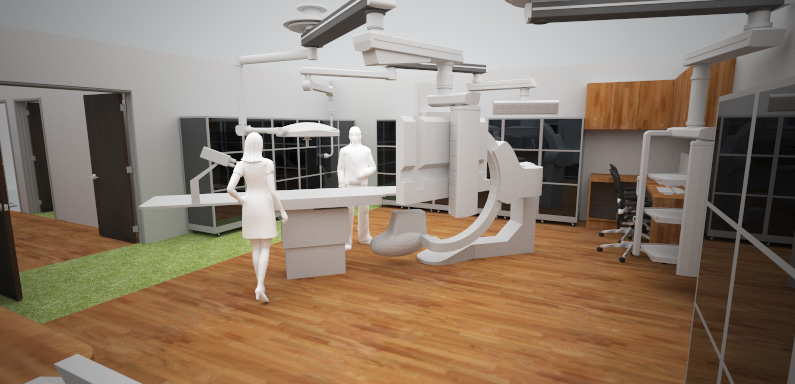

Architectural Design of existing Catheterization Laboratory to accommodate the requirements of new catheterization machine including control room, generator room, and supply storage. Area of renovation is approximately 2,300 Sq.Ft. Architectural, fire protection, plumbing, HVAC and electrical system were modified to accommodate the renovation and provide hybrid operating environment. The control room has new flooring, counter tops and was designed per new requirements of the imaging machine. Phasing plan was developed for continued operation of an adjoining lab.

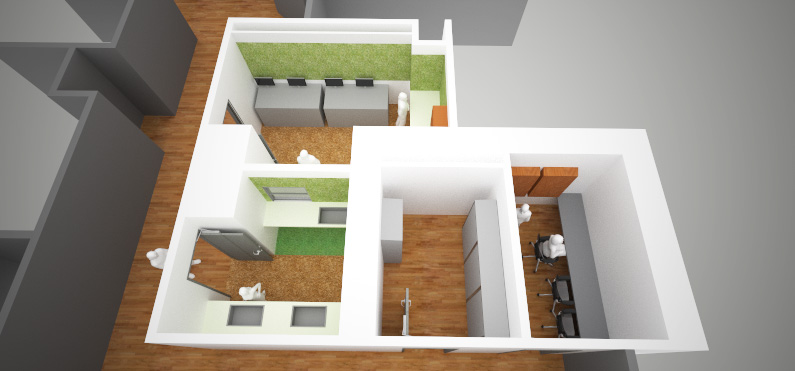

The architectural design of existing space into new Endoscope Processing/High Level Disinfection area including Dirty Room, Clean Room, Reading Room and Scope Storage Room. The area of renovation is approximately 600 sq. ft. New Endoscope Processing/High Level Disinfection area will adhere to VA guidelines/specifications and will meet space programming and function. Renovation will include requirements to accommodate new equipment requirements. Architectural and structural elements, as well as fire protection, plumbing, HVAC and electrical systems were redesigned to meet the new parameters.

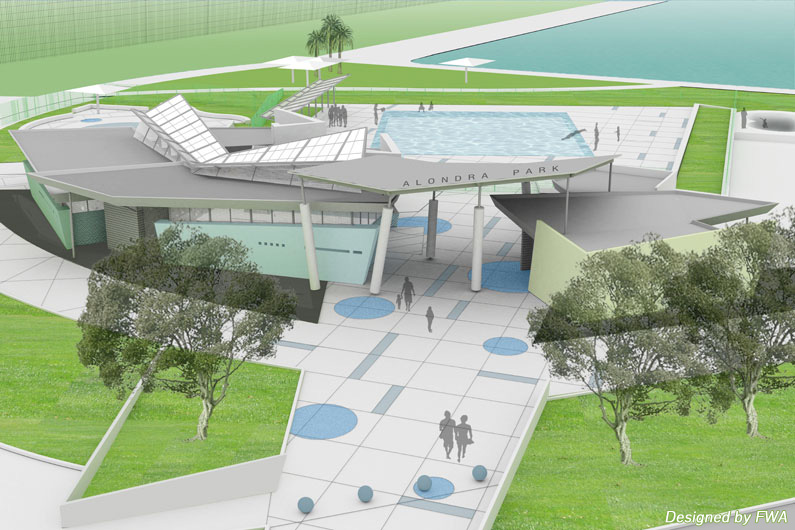

3.5 acre park facility with swimming pool, Skate Park, splash pad, picnic areas.

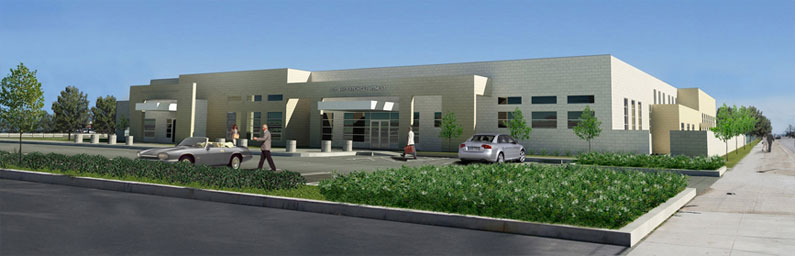

The Centinela Probation building provides 25,000 square feet of useable office space for staff of 152, containing offices for administration, support staff, and Probation Officers. The Public Works Building and Safety District Office is an additional 5,000 square feet of office space for a staff of 21. The parking lot accommodates 135 staff parking spaces and an additional 45 spaces for visitors. The total project costs are $21M.

SRD Management provided design management which includes managing of consultants for the soils investigations, phase I and II environmental investigation, environmental impact reports, topographical surveys, utility surveys and brown-field site remediation, preparation of scope of work, preparation of budget and schedule, management of jurisdictional reviews and approvals from Local, State and Federal Authorities, independent check estimates, and adherence to sustainable design goals. Construction Phase services included RFIs & Submittals.

A two story addition of 8,600 Sq. Ft. with 3,700 Sq. Ft. of existing will be renovated.

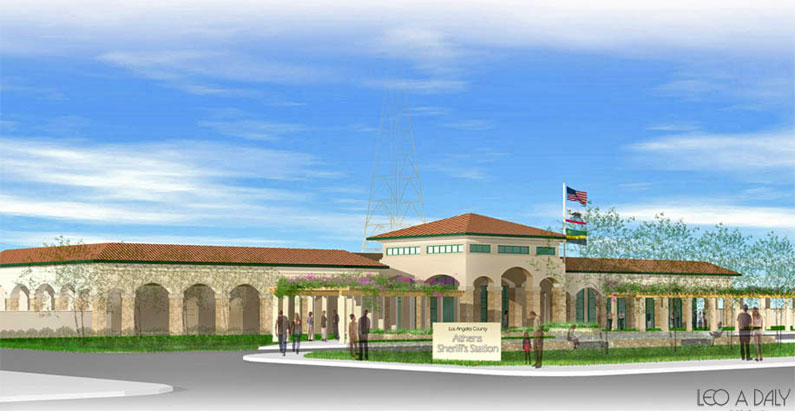

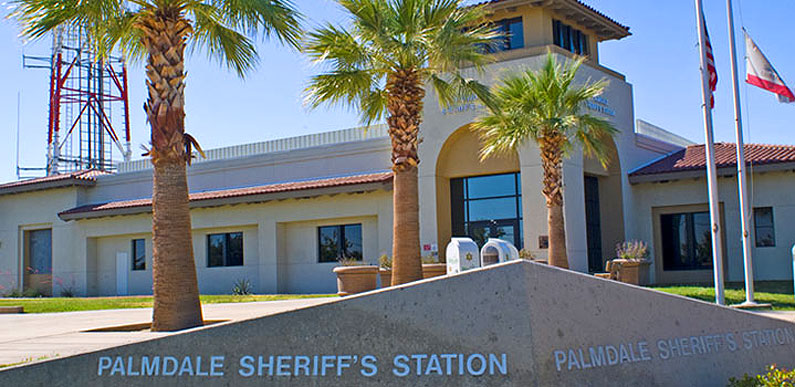

50,000 square foot facility includes Sheriff Station, Service Building, Helistop and communication tower.

8,000 square foot facility includes one stop shop concept with Regional Planning and Health Department offices with Fire Department in adjacent spaces.
